DAB Esybox Max: Modular Commercial Water Pressurisation System
The DAB Esybox Max is an integrated pumping system built for water pressurisation in commercial building service. Available in two power sizes, it’s composed of modular elements — single, double, triple, or quadruple unit configurations covering the needs of medium to large condominiums and high-rise buildings, even over 14 floors.
Assembled On Site, By One Person

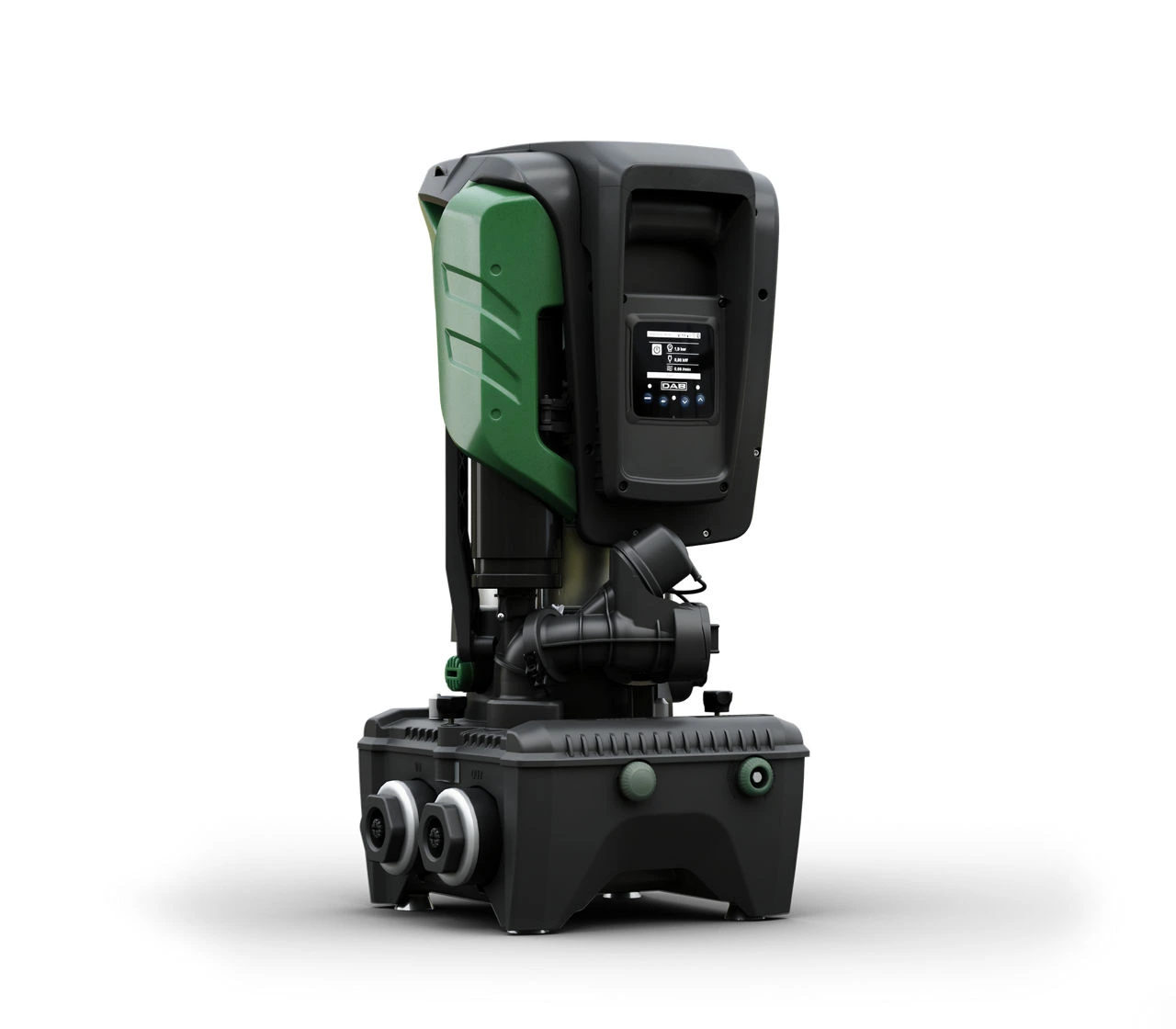

Each unit consists of a hydraulic connection base and a pumping unit — an electronic vertical multi-impeller pump, display, Wi-Fi module, pressure sensors, non-return valve, and expansion tank, all integrated. The support base and wireless communication between pumps allow the system to be assembled directly at the installation site, even by a single installer, using DAB’s On Site Assembly (OSA) concept.
Built for High-Rise Performance
Esybox Max delivers up to 17.4 m³/h (290 l/min) with a head of 96 m and operating pressure up to 12 bar (1200 kPa) — performance built for tall buildings and larger commercial sites, not single homes. A water-cooled permanent magnet motor paired with a variable frequency drive keeps pressure constant as demand changes, improving efficiency and reducing energy costs.
Hyper-Connected
Native Wi-Fi and Bluetooth connectivity let pumps communicate with each other and with external systems in real time. Through DAB’s H2D platform, facility managers can monitor performance, receive anomaly alerts before they become failures, and adjust configurations remotely — reducing the number of site visits needed for routine checks.
Modular and Easy to Handle
Despite being the largest model in the Esyline range, Esybox Max ships in compact, lighter packaging with integrated handles, so each component can be transported and installed separately — useful for tight plant rooms in older buildings as well as new construction.
BMS Integration
The Esy I/O expansion module (available as an accessory) lets Esybox Max interface directly with a building’s BMS (Building Management System) — relevant for commercial and institutional properties with centralized monitoring requirements.
Recognized Design
Esybox Max won the iF Design Award 2021, with the jury describing it as one of the smartest and most reliable pumping systems on the market, and praising its ergonomic, easy-to-install, and energy-efficient design.
Specifications
| Flow rate | Up to 17.4 m³/h (290 l/min) |
| Head | 96 m |
| Max liquid temperature | +50°C |
| Max room temperature | +55°C |
| Max inlet pressure | 5 bar |
| Operating pressure | Up to 12 bar (1200 kPa) |
| Adjustment range | 1–12 bar (3 bar factory setting) |
| Max suction height | 4 m (with foot valve) |
| Motor protection class | IP X5 |
| Insulation class | F |
| Expansion tank | 2 litres, integrated, 5-year warranty |
| Configurations | 1 to 4 units (modular) |
| Connectivity | Native Wi-Fi, Bluetooth, H2D app/DConnect |
| BMS integration | Via Esy I/O expansion module (accessory) |
| Certifications | WRAS, NSF61, ACS |
| Recognition | iF Design Award 2021 |
| Series | Esyline |
Applications
- High-rise residential buildings and condominiums (14+ floors)
- Commercial buildings and office complexes
- Hotels and institutional facilities
- Rainwater harvesting systems at scale
- Landscaping and livestock/fish farming water supply
Which Esybox Fits Your Project?
Esybox Mini 3 and Esybox Pop suit individual homes and apartments. Standard Esybox and 2 EsyBox with EsyTwin cover villas, condos, and mid-sized residential or commercial properties. Esybox Max is DAB’s top-tier commercial solution — built specifically for high-rise buildings, large condominiums, and sites needing modular, BMS-integrated water pressurisation. See 2 EsyBox with EsyTwin if your project needs less than Max’s full capacity.
Supplied and Installed by AY Internationals
We’re an ISO 9001:2015 certified, authorized DAB dealer based in Lahore. Our engineers handle installation, commissioning, and BMS integration support for commercial and high-rise projects, with after-sales service available throughout the system’s lifecycle.
Documentation
- EsyBox Max Instruction Manual
- EsyBox Max Quick Guide
- EsyBox Max Technical Sheet
- Declaration of Conformity (CE)
- Sanitary Conformity (ACS)
Common Questions
Is Esybox Max suitable for a high-rise building?
Yes — it’s specifically built for medium to large condominiums and high-rise buildings, even over 14 floors, in modular 1-4 unit configurations.
Can it integrate with our building’s BMS?
Yes, via the Esy I/O expansion module, sold as an accessory, which connects Esybox Max to a building management system.
How is it installed in buildings with limited plant room space?
Components ship separately and are assembled on site (DAB’s OSA concept), which makes installation in tight plant rooms more manageable than a single large pre-assembled unit.
How do I get a quote for a commercial or high-rise project?
Contact AY Internationals via WhatsApp or our contact page — our team can discuss project requirements and the right Esybox Max configuration.
