Quick answer: DAB centrifugal pumps in Pakistan are used for house water supply, pressure boosting, building services, irrigation and light industry. For most homes and small farms, a single-impeller K or KI series pump is the usual starting point. For higher pressure from a compact unit, multistage models such as KVC or Multi Inox are the better fit. The right choice depends on four numbers: the flow you need, the total head, the power supply (single or three phase), and where the water is coming from.
Why centrifugal pumps matter so much in Pakistan
Water is pumped before it is used almost everywhere here: from a bore to a tank, from a tank to the upper floors, from a channel to a field. Agriculture uses over 90 percent of the country’s available water and relies more and more on groundwater. The Pakistan Bureau of Statistics’ Agricultural Census 2024 counted 1,832,232 tube wells and lift pumps, of which 912,327 are solar-powered.
That makes pump choice a real cost decision, not a minor one. A pump that is too large wastes electricity, and one that is too small runs hot and fails early. An energy audit of 194 tube wells in the Multan region found a major inefficiency caused by a mismatch between horsepower and bore depth. The same study found centrifugal pump sets with electric motors improved from 35% to 54% efficiency after correction. The lesson for any buyer of centrifugal pumps in Pakistan is simple: size the pump to the job instead of buying by horsepower alone.
What is a centrifugal pump, and how does it work?
A centrifugal pump uses a spinning impeller to throw water outward into a curved housing called the volute. This raises the water’s pressure and pushes it into the delivery pipe. As water leaves the center of the impeller, fresh water is drawn in behind it.
Three practical points follow from this:
- Priming matters. A standard centrifugal pump must have its casing and suction pipe full of water before it starts. Running it dry damages the mechanical seal quickly.
- Flow and head trade off. The more height or pressure a pump must deliver, the less flow it produces. Always read the pump curve, not just the HP rating.
- Clean water is the target. Centrifugal pumps handle clean or lightly contaminated water. Sand and silt wear the impeller and seal.
About DAB Pumps
DAB is an Italian manufacturer. It was founded in 1975 in the Veneto region of northern Italy, now produces more than two million pumps a year, and operates in over 150 countries. Its head office is in Mestrino, Italy. It later added brands such as Alma, Leader, Tesla submersible motors and Brisan through acquisitions between 1998 and 2009, which widened its range across residential, commercial and industrial use.

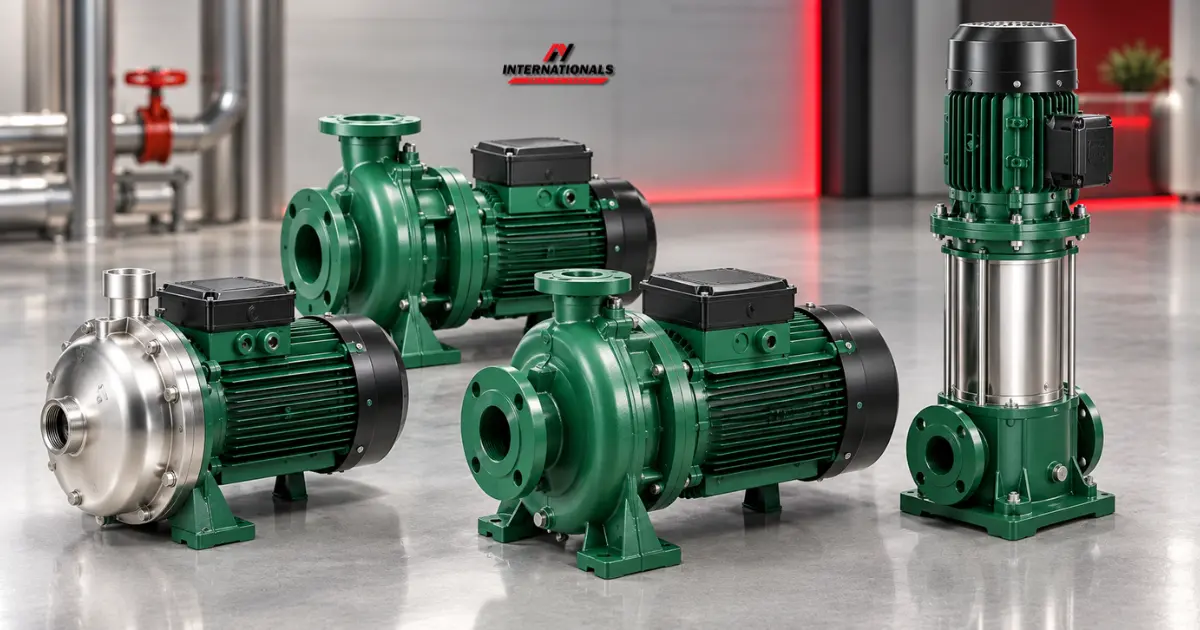

DAB centrifugal pump ranges you will meet in Pakistan
| Series | Type | Typical use |
|---|---|---|
| K | Single-impeller, cast iron body | Water supply, pressure sets, irrigation, transfer |
| KI | Single-impeller, stainless steel head | Residential and light industrial pumping where corrosion resistance matters |
| KVC / KVCX | Vertical multistage | Small and medium water supply and boosting |
| Multi Inox | Self-priming multistage | Homes and gardens where suction conditions are less than perfect |
| NKV / NKVE | Vertical multistage, stainless steel | Higher-pressure building and industrial systems |
| KC / KCV, KL | In-line pumps | Circulation and building services |
K series
DAB describes it as a single-impeller centrifugal pump line for pressurisation units in domestic, civil and industrial water supply, also suited to sprinkler irrigation. The published spec lists a cast iron pump body, a technopolymer impeller, a stainless steel shaft and a carbon/ceramic mechanical seal. It covers 1.8 to 96 m³/h flow, heads up to 62 metres, and liquid temperatures from -15°C to +110°C, with a maximum ambient temperature of 40°C. That last figure matters in a Pakistani summer, so keep the pump in a ventilated, shaded location.
The smaller single-phase models are listed as suitable for domestic, civil, industrial and agricultural systems, and for decanting, mixing and irrigation.
KI series
This is the stainless-steel-head version. It is described as a single-impeller centrifugal pump with IE2 energy efficiency certification, used in residential and industrial water pumping.
Multistage and self-priming options
The KVC is a vertical multistage pump for small and medium water supply installations, and the Multi Inox is a multistage self-priming pump with good suction even when air bubbles are present. The self-priming feature is useful where the pump sits above the water level, such as a pump placed on a roof.
Check the exact models, voltage versions and stock availability with us before ordering, since not every variant is held in Pakistan.
Which DAB centrifugal pump suits which job?
House and apartment water supply. Choose a single-phase pump to move water from an underground tank to an overhead tank or to boost pressure to upper floors. A multistage pump gives steadier pressure for showers on the top floor.
Buildings and commercial use. Plazas, hospitals, hostels and factories usually need three-phase pump sets, sometimes duplex (two pumps in parallel) for backup. DAB also offers water-lifting sets with one, two or three pumps from the NKP G/K range, built on a galvanised steel base with suction and delivery manifolds.
Agriculture. Centrifugal pumps lift water from channels, ponds and shallow wells and feed sprinkler or drip systems. For deep bores, a submersible is the correct tool, not a surface centrifugal pump. Surface pumps work best when water is within a few metres of the pump.
Industry. Transfer, cooling water, washing and process water, using stainless models where corrosion is a concern.
How to choose the right pump: five checks
- Flow (m³/h or L/min). Add up the water the system needs at peak. A household usually needs far less than a farm.
- Total head (metres). Height from water level to the highest outlet, plus pipe friction losses, plus the pressure you need at the tap. Long, narrow pipes can add a surprising amount.
- Power supply. Single phase (230 V) for homes and small pumps, three phase (400 V) for larger duties. Voltage in many areas swings, so check what your site really delivers.
- Suction conditions. If the pump sits above the water, you need either a self-priming model or a foot valve and priming setup. Flooded suction (pump below the water level) is the easiest.
- Water and materials. Cast iron suits clean water. Stainless steel is better for corrosive or hard-water conditions and for drinking water.
Worked example: A two-storey house with a roof tank about 8 m above the pump, a 20 m pipe run and a basement tank. Static head is around 8 m, friction and fittings might add 3 to 4 m, so aim for a duty point near 12 m head at the flow you need. Pick the pump whose curve passes through that point near its best efficiency, not the largest one in the catalogue.
Installation and maintenance tips for Pakistani conditions
- Protect against voltage swings. Use a proper voltage protector or stabiliser and overload protection. Unstable supply is a common reason for burnt motors.
- Never run dry. Prime before the first start, and consider a dry-run or float switch on the tank.
- Fit a strainer and foot valve on the suction side so debris and air don’t enter the pump.
- Keep the suction pipe short and airtight. Air leaks are the most common cause of low pressure.
- Give the motor air. Shade, ventilation and distance from walls help it stay within its temperature limit.
- Check the mechanical seal if you see dripping at the shaft. Replace it early and avoid damaging the shaft.
Common problems and quick fixes
| Problem | Likely cause | What to check |
|---|---|---|
| Pump runs but no water | Not primed, air leak, blocked foot valve | Refill the casing, inspect suction joints |
| Low pressure | Worn impeller, wrong pump size, partly closed valve | Compare against the pump curve |
| Motor overheats | Low voltage, dry running, poor ventilation | Check supply and ambient heat |
| Noise or vibration | Cavitation, loose mounting, bearing wear | Reduce suction lift, secure the base |
| Frequent tripping | Overload or voltage drop | Check current and cable size |
Centrifugal vs submersible vs jet pumps
- Centrifugal (surface): easy to service, good for tanks, boosting and shallow sources.
- Submersible: best for deep bores because it pushes water up instead of pulling it.
- Jet pump: self-priming, suited to lift from wells, but usually less efficient.
Buying genuine DAB pumps in Pakistan
Online listings show a lot of DAB products, including solar submersible models, so confirm what you are actually buying. Before paying:
- Ask for the exact model code and compare it with DAB’s datasheet
- Confirm warranty terms and who handles after-sales service
- Check the nameplate and packaging on delivery
- Buy from a supplier who can advise on sizing, not just quote a price
Get the right DAB pump from AY Internationals
AY Internationals supplies DAB pumps in Pakistan. Send us your flow requirement, total head, power supply and water source, and we will recommend a pump that fits instead of simply the biggest one.
Call/WhatsApp: +92 300-8482031 | Request a quote: Get a quote
Related: Browse DAB pumps | Contact us
Frequently asked questions
Which DAB centrifugal pump is best for a house in Pakistan?
For most houses, a single-phase single-impeller pump (K or KI series) for tank filling, or a multistage model such as KVC or Multi Inox when you need steadier pressure. Final choice depends on tank height and pipe length.
What is the difference between K and KI series?
Both are single-impeller centrifugal pumps. K uses a cast iron body, while KI has a stainless steel head with better corrosion resistance.
Can a centrifugal pump lift water from a deep bore?
Not efficiently. Surface pumps pull water up and are limited by suction lift. Deep bores need a submersible or borehole pump.
Does a centrifugal pump need priming?
Yes, standard models need the casing and suction line full of water before starting. Self-priming models like the Multi Inox tolerate air better.
How do I know what HP I need?
Calculate flow and total head first, then read the pump curve. Choosing by HP alone often wastes power.
How much does a DAB centrifugal pump cost in Pakistan?
Prices depend on model, power, phase and exchange rates, so they change often. Contact us for a current quotation.
Conclusion
DAB centrifugal pumps in Pakistan cover everything from a home booster to a building pressure set, but the best results come from matching the pump to flow, head, suction and power supply. Get those numbers right and install it with basic protections, and a good centrifugal pump will run reliably for years.
